When Fiber GeoApps is selected in the FiberGeo section, predefined structures can be chosen from the pull-down menu in the Fiber GeoApps panel: Dewatering Felt, Rock Wool, Spunbond Nonwoven, and Two-Layered Filter Media.

Add Grain GeoApps Structures

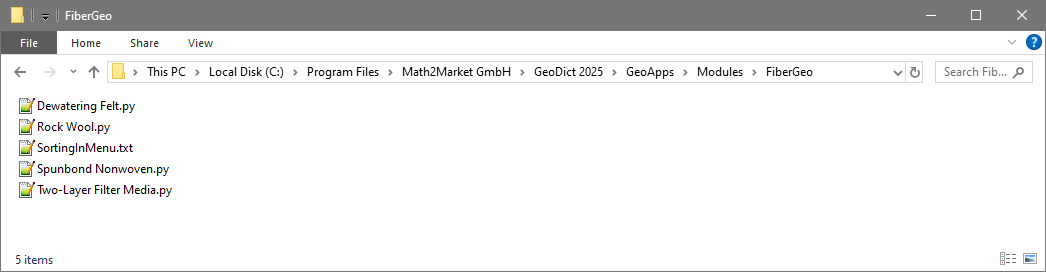

During the creation of predefined materials, the corresponding GeoDict macros are called and executed. These macros can be accessed through the Open Macro-File button; alternatively, they are available in the FiberGeo folder in the GeoApps folder of the GeoDict installation folder. They can be opened with a text editor to check or edit the syntax of the generation steps. To learn how to add GeoApps, refer to the GeoApp handbook.

Fiber GeoApp Gallery

All GeoApps can be edited through the Options’ Edit… button. The parameters for the apps are shown in their respective dialog. Click Run to create the structure with the chosen settings.
