Gas Diffusion Layer
The Gas Diffusion Layer app creates a gas diffusion layer of a PEM fuel cell.
|
Modules needed to run this GeoApp: FiberGeo |
Parameters

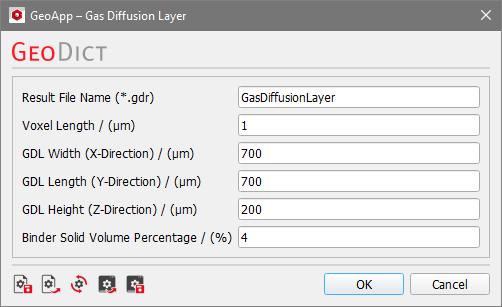

Clicking Edit opens the Gas Diffusion Layer Parameters dialog.
First, define the Result File Name.
Then, set the domain parameters in µm using the parameters Voxel Length, GDL Width (X-Direction), GDL Length (Y-Direction) and GDL Height (Z-Direction).
Finally, define the Binder Solid Volume Percentage.
Results

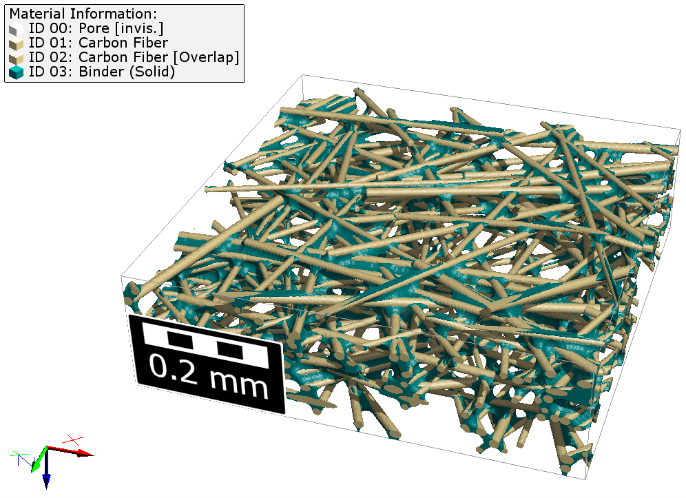

Clicking Run creates the diffusion layer and saves the structure file in the result folder.
