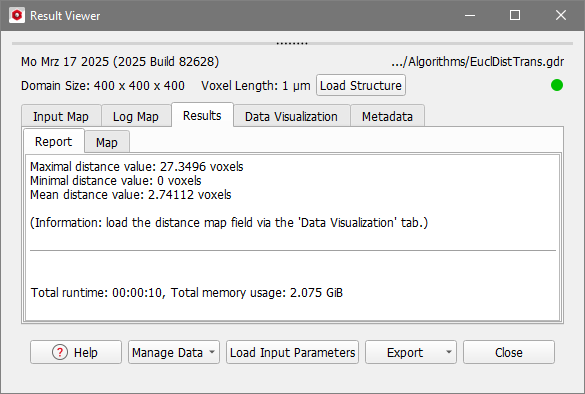

The Result Viewer opens at the end of the computation and the result file is automatically saved in the project folder. In the Results – Report tab three values can be found.

The Maximal distance value is the maximal value found in the computed Euclidean distance map. It corresponds to the maximal distance a point within the selected Material IDs can have to the next boundary.

The Minimal distance value is the minimal value found in the computed Euclidean distance map. Be aware, that this is in general not the minimal distance a point within the selected Material IDs can have to the next boundary, because also the values inside of the solid materials are taken into account. In the standard case, the Minimal distance value will be 0. For signed distance maps, the result corresponds to the maximal (negative) distance a point within the solid material can have to the boundary.

The Mean distance value is the average of all values in the computed Euclidean distance map. All materials (foreground and background) are taken into account when the average distance is determined.
