Pile Options

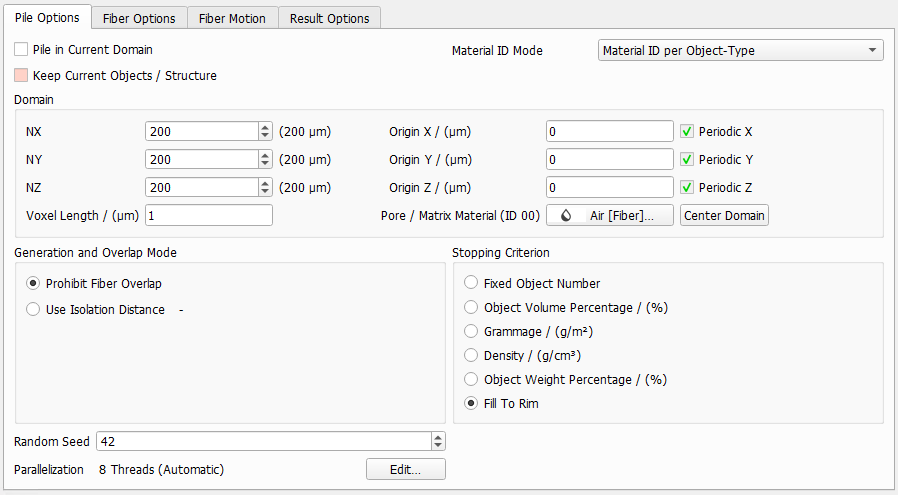

The general parameters of the piled structure are entered through the selected Pile Options tab, and grouped into Domain, Generation and Overlap Mode, and Stopping Criterion panels. Additionally six single options are available in two groups, the Structure Options at the top and the General Options at the bottom of the dialog.
The parameters are organized in the following groups:
|
- Structure Options
Define the material mode and decide to pile fibers in the current domain and if the current structure should be kept.
- Domain Parameters
Define the domain parameters, such as resolution and matrix material.
- Generation and Overlap mode
Decide about prohibiting overlap or defining an isolation distance.
- Stopping Criterion
Define after which criteria the piling of fibers should be stopped.
- General Options
Define the temperature, the random seed and the number of parallel processes.
|
