ElectrodeGeo - Cathode
The ElectrodeGeo- Cathode app generates an anode according to the given materials and solid volume percentages.
|
Modules needed to run this GeoApp: GrainGeo |
Parameters

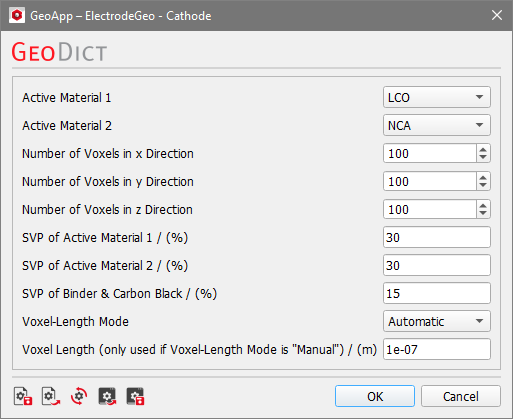

Clicking Edit opens the ElectrodeGeo - Cathode parameters dialog.
Two active materials can be set. If only one active material is needed, set the Active Material 2 to None.
For the cathode active materials choose from the materials LCO, LMO, NCA and NMC.
Define the volume dimensions as Number of Voxels in the three directions.
Determine the solid volume percentages (SVP) for the active materials and the binder.
The voxel length can either be given manually or it can be set to automatically fitting the other parameters.
Results

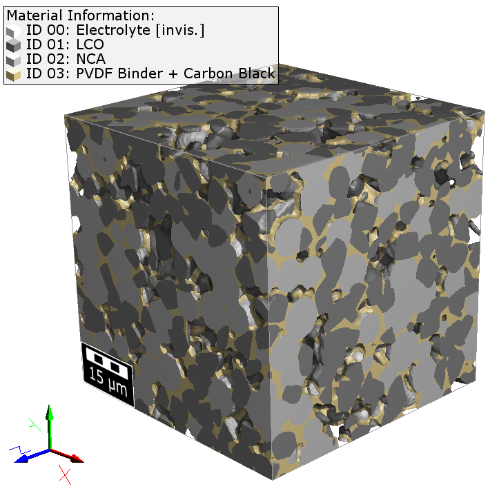

Clicking Run creates the cathode. Below find the cathode generated with the default settings, except for a larger domain size (250x250x250 voxel)..
|
Know how! This GeoApp does not save the resulting structure automatically. Thus, remember to save the file by secting File - Save Structure as from the menubar. |
