Determine the material and observe a preview visualizing the current settings entered in the Create Options and Custom Generation Options.

Material

The generated structure consists of two materials. In the Material panel select the Material (ID 01) from the material data base.

If Grammage, Density or Weight Percentage are selected for thresholding, also the Temperature can be edited. The temperature unit can be chosen as K, °C or °F. If Manual is chosen as material a Bulk Density must be entered.

The Pore / Matrix Material (ID 00) is defined in the Domain panel. The material filling the pore space can be Solid, Porous, or Fluid. For a porous matrix material, a density can be entered, if grammage, density or weight percentage are chosen for thresholding.

Preview

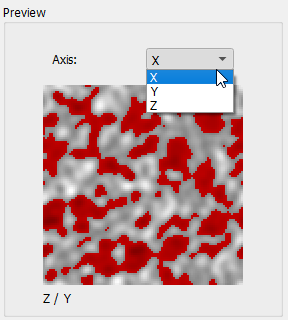

In the bottom right of the Stochastic Field Thresholding dialog a preview of the generated random field (gray values) and the segmentation result (red for Material ID 01) is displayed.

The preview is automatically updated when changing the values for the Domain, Generation Mode and Thresholding parameters. The view direction can be selected from the pull-down menu for Axis.
