Adjust Voxel Length
With the Adjust Voxel Length command the current voxel length can be changed, whereas the voxel count stays the same.

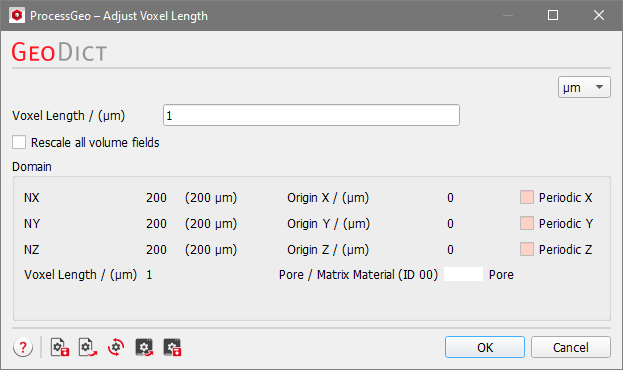

In the Adjust Voxel Length dialog, select the units (m, cm, mm, µm, nm, Inch) for the voxel length from the pull-down menu in the upper right corner.
Enter the new Voxel Length in the corresponding field
The option Rescale all volume fields allows to change the voxel length of the currently loaded volume fields accordingly. Thus, a structure and its volume field can still be shown simultaneously in the visualization area and their domain sizes fit together.
|
Important! The values inside the volume field are not changed! Thus, the volume field might not fit to the structure anymore, e.g. if a velocity field is loaded. |
The Domain panel below shows the current domain parameters, nothing can be edited here.
This change in voxel length occurs on the already generated structure (post-processing). To vary voxel length for the generation of a new structure (pre-processing), the value has to be changed through the Options Edit… button in the module section of the corresponding Material Modeling module (FiberGeo, GrainGeo, WeaveGeo, etc.).
