Results

The result file (*.gdr) is opened in the Result Viewer after the computation is finished.

SatuDict_ResistivityIndex_Results_ExampleStructure

The results of the resistivity index calculated on a partially saturated porous material with 17% porosity (83% SVF) are shown. The invading fluid is Oil (0 S/m) and the displaced fluid is Water (Brine) (5 S/m) while the only solid material in the structure is the non-conductive material Quartz (Material ID 01) with 0 S/m. The relative electrical conductivity was calculated in Z-direction with Dirichlet boundary conditions (Boundary Conditions tab). Computations were run using the EJ solver.

Report tab

Under the Results-Report sub-tab, the tables for Saturation exponent, Cementation exponent, Resistivity index, and Relative Electrical Conductivity are shown for the chosen saturation rates (here, 0, 0.25, 0.50, 0.75, and 1), which are approximated as best as possible (here, 0, 0.246104, 0.510196, 0.749864, and 1). https://en.wikipedia.org/wiki/Archie's_law

hmtoggle_arrow0Saturation Exponent

hmtoggle_arrow0Cementation Exponent

hmtoggle_arrow0Resistivity Index

hmtoggle_arrow0Relative Electrical Conductivity

Plots tab

In the Results-Plots subtab, the values of the Relative Electrical Conductivity table are shown in a graph. Also, the Layered Potential in the computed directions is given.

Electrical Conductivity Plot

The values of the electrical conductivity in all selected Computational Directions at the different saturation levels are shown in a graph.

On the left, the Post-Processing Widget allows you to fine-tune the Electrical Conductivity plot. Collapse the Post-Processing Widget by pulling it to the left.

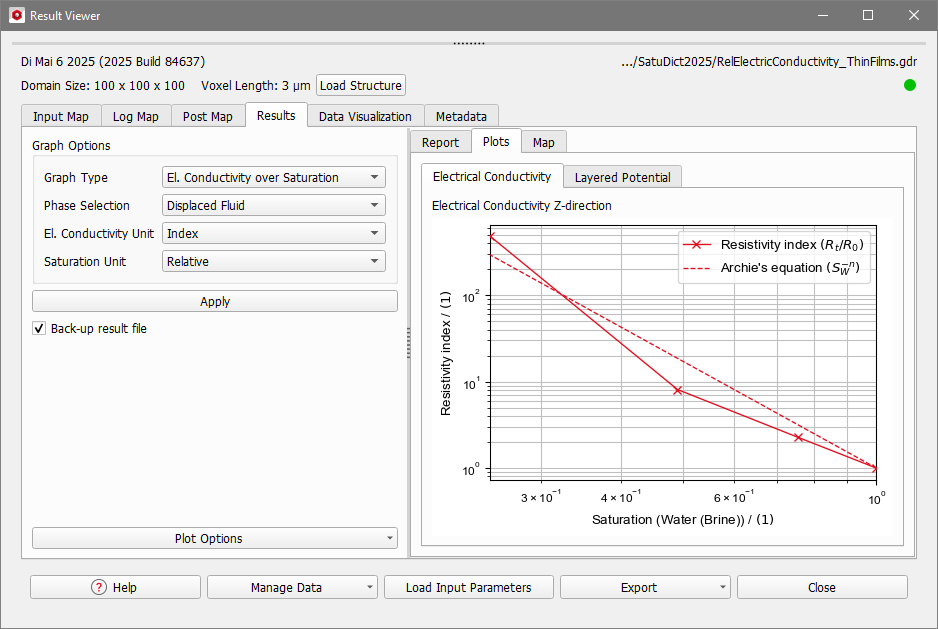

SatuDict_ResistivityIndex_Results_Plots_ElectricalConductivity

hmtoggle_arrow0Graph Options

Layered Potential

In the Layered Potential tab for each computational direction the potential in each layer is shown in a graph. The saturation values for each graph correspond to the saturation of the invading fluid. The settings made under the Graph Options do not apply for these plots, but the axis settings and graph styles can be changed under Plot Options.

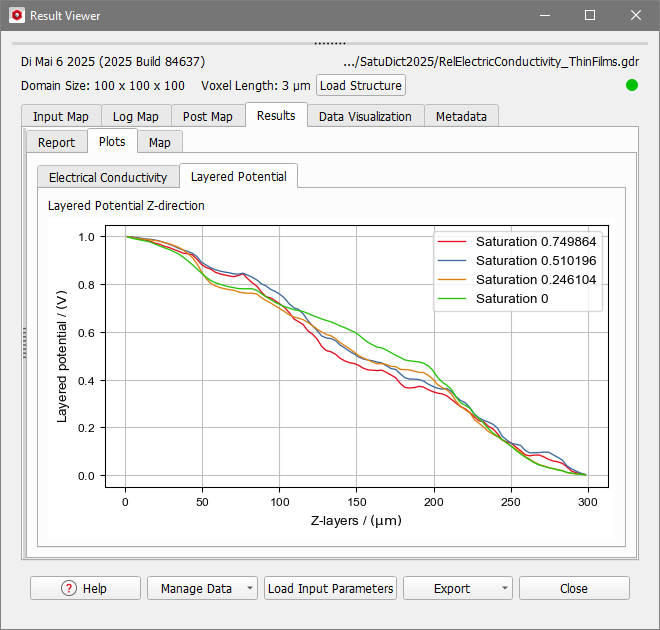

SatuDict_ResistivityIndex_Results_Plots_LayeredPotential

Influence of Thin Films

We redo the computations, but without adding thin film voxels and compare the plots of the resistivity index using a combined gdr file. Observe that for the structure without thin film voxels there is no conductivity above an oil saturation of about 50%.

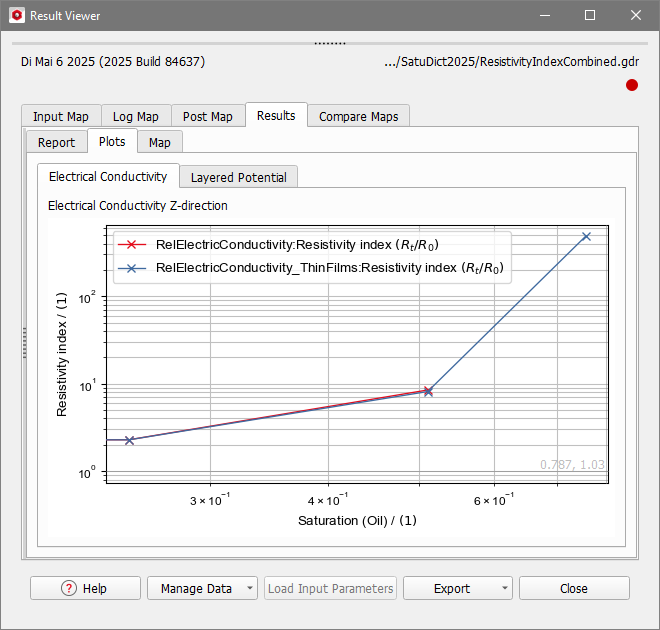

SatuDict_ResistivityIndex_Results_ThinFilmsCombined
