In the GAD Objects Section you can view the GAD Object number and edit GAD objects.

The color dot in front of GAD Objects shows whether analytical information about the objects inside of the current structure is available (green dot), or not (red dot). The dot is yellow when GAD information is available, but this information does not describe the current voxelized structure completely. This may happen, for example, when the structure has been modified after the generation (e.g., with ProcessGeo or LayerGeo).

Unfolding the section shows the number of GAD objects (such as fibers, grains, etc.) in the structure (GAD Object Number).

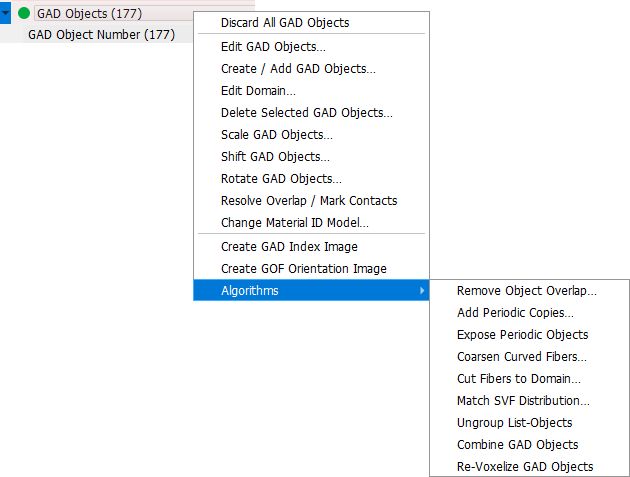

Right-clicking on GAD Objects opens a list of possible modifications, like editing the GAD objects or the domain, creating, adding, deleting, scaling, shifting and rotating GAD objects, resolve overlap and mark contacts, change the Material ID model, or to create a GAD index image or an orientation image. By choosing Algorithms, all manipulations of analytic objects, available in the section Algorithms of GadGeo can be accessed.

All of these modifications can be accessed also from the module GadGeo and are explained in the GadGeo handbook.

Discard All GAD Objects is only available here and will discard only the GAD information. The voxel information is not deleted.
