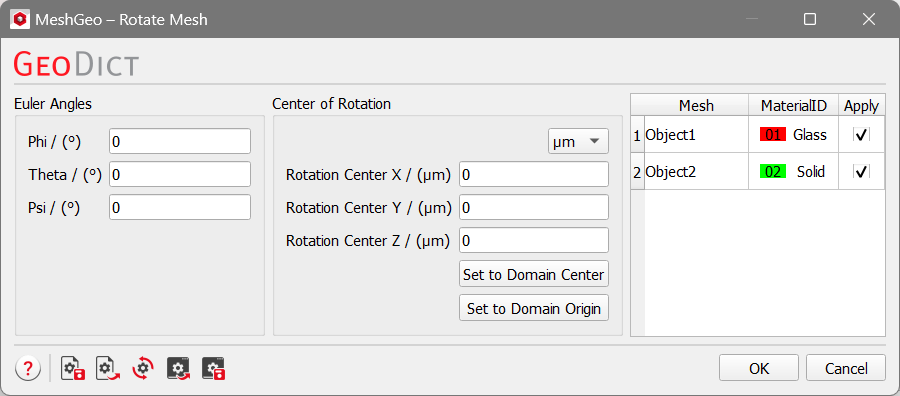

If a mesh needs to be rotated, select Rotate Mesh from the pull-down menu and click Edit… to open the Rotate Mesh dialog.

Enter the Euler Angles Phi, Theta, Psi by which the selected mesh should rotate. More details about Euler Angles can be found in GadGeo handbook. The rotation can be around either the domain center or domain origin.

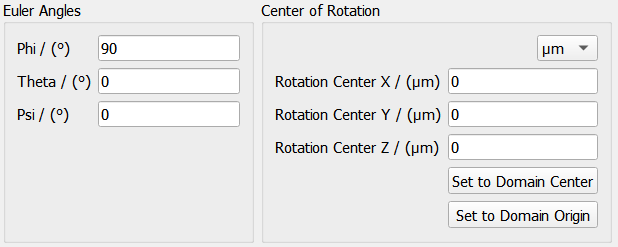

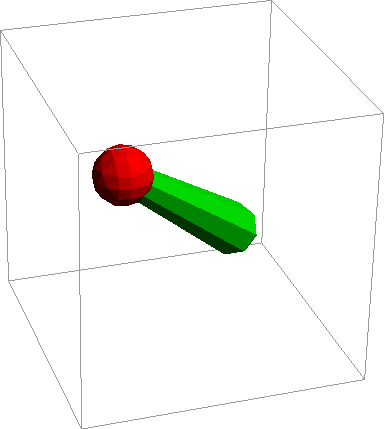

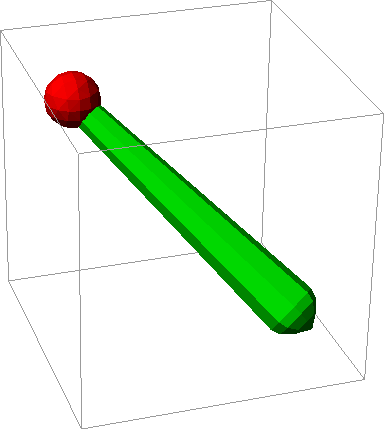

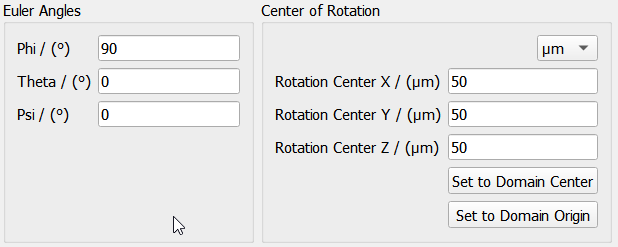

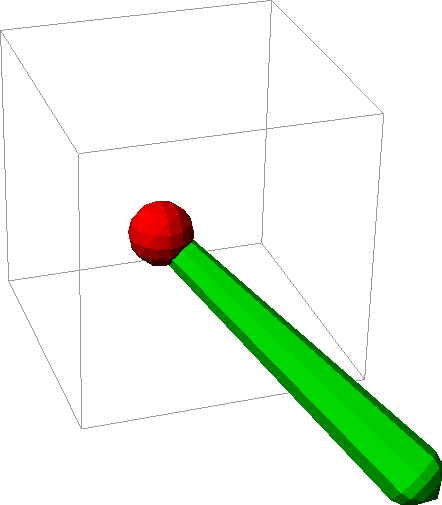

An example of mesh rotation is shown below. The image (a) shows the original mesh of the match structure. Image (b) shows mesh after the rotation of Phi with 90° around the domain origin, and Image (c) the rotation of Phi with 90° around the domain center.
