Plots
Under the Plots tab, only the Convergence and Residual plots are available:

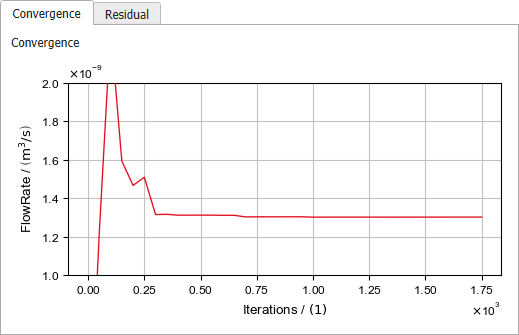

Convergence
The Convergence tab plots the computed flow rate at each iteration.
|

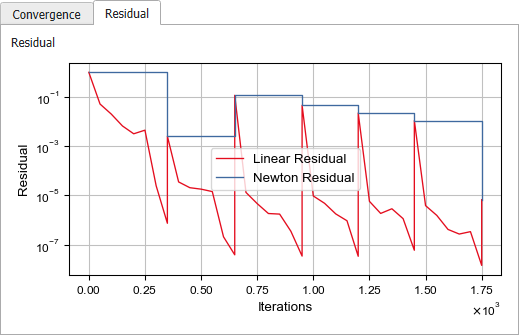

Residual
The Residual plots tab shows the Linear Residual and the Newton Residual at given Iteration values. The Newton Residual is defined as the residual while solving non-linear equations with Newton’s method. The Newton residual curve changes, when the equation is solved, while the linear residual changes with every iteration while solving a linear equation system.
This plot is available only when the Krylov method is used.
|
