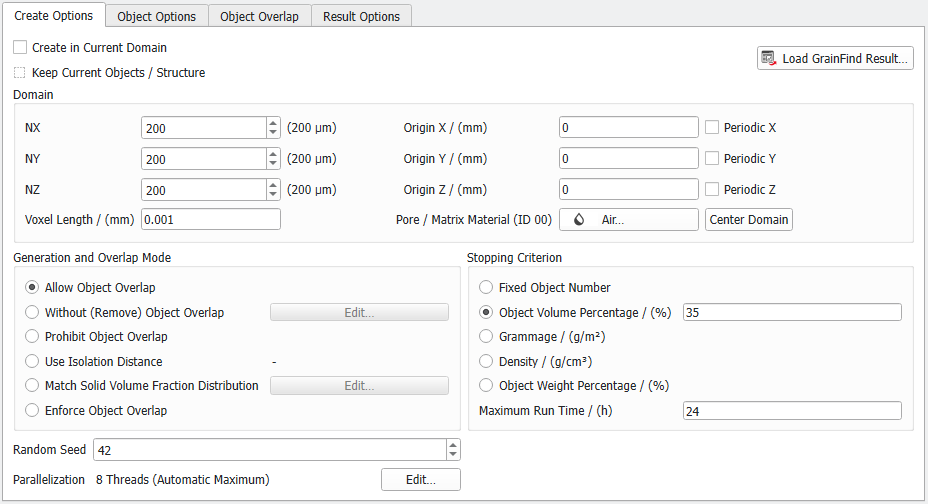

Create Options
Determine general properties of the resulting structure, such as size, position, resolution, and solid volume fraction. The parameters are grouped into three panels and five to six single parameters, three structure options at the top and two to three general options at the bottom. The parameter temperature is only shown, if a corresponding stopping criterion is selected.
The parameters are organized in the following groups:
|
- Structure Options
Create in a current domain and keep current objects or the current structure.
- Domain
Define the domain parameters, such as resolution, periodicity, and matrix material.
- Generation and Overlap Mode
Decide about removing overlap and following solid volume fraction distributions.
- Stopping Criterion
Define according to which criteria the object generation should be stopped.
- General Options
Define parallelization, temperature, and random seed.
|
