After the Percolation Path calculation is finished, the resulting files are saved in the project folder and a Result Viewer with the GeoDict result file opens automatically. The created GeoDict result file (*.gdr) contains five tabs. The computational results are shown under the Results tab, and can be loaded for visualization via the Data Visualization tab. The other three tabs (Input Map, Log Map, and Metadata) display additional information about the computation.

Find more details on the general functionalities in the Result Viewer user guide.

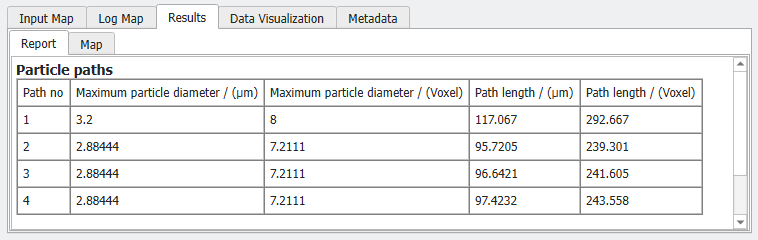

The Results - Report subtab shows for all found paths the Maximum particle diameter (in µm and Voxel) of spherical particles which may pass through the medium, as well as the Path length (in µm and Voxel) of the detected percolation path(s).
