Particles Mesh
Particle positions and trajectories can be obtained from FilterDict and AddiDict simulations. MeshGeo can create a mesh from the currently loaded particles in GeoDict. The mesh is always created at the particle positions currently shown in GeoDict. Particles and trajectories can be loaded e.g. from a FilterDict or AddiDict result file.
To do so, select File → Open Results (*.gdr)… from the menu bar or click the
icon in the toolbar. Select a GeoDict results file to open it in the Result Viewer. Click Load Structure to load the structure for which the results were computed. Under the Result Visualization tab, click Load Particles.

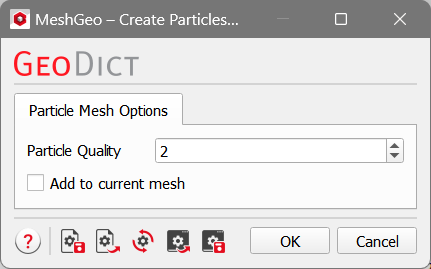

Select Create Particles Mesh in MeshGeo, or Export Particles Mesh in MeshGeo or ExportGeo-CAD and click the Options’ Edit… button to set the parameters. When all settings are chosen, click the Create or Export button at the bottom of the MeshGeo or ExportGeo-CAD section to create the mesh.
