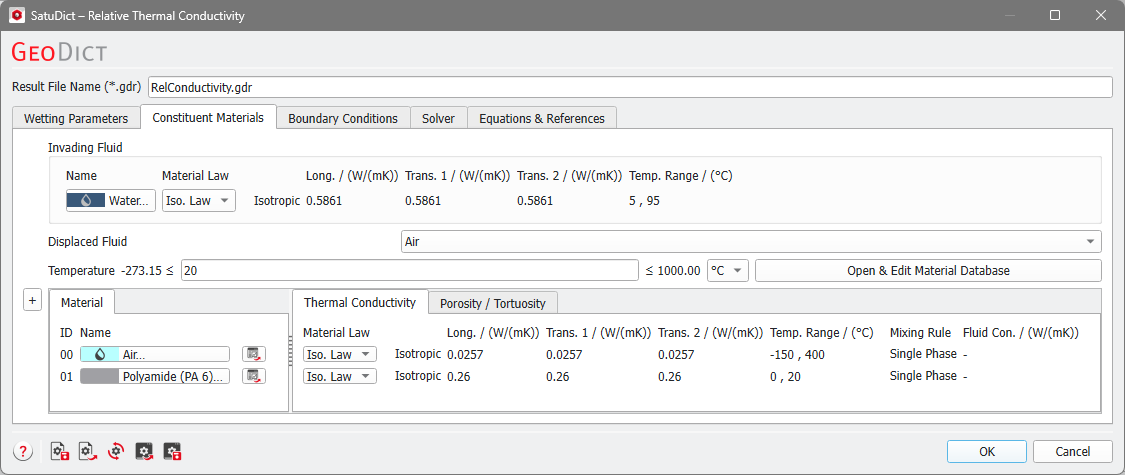

Under the Constituent Materials tab, the Invading Fluid and Displaced Fluid can be entered and their thermal conductivity (W/(mK)) can be defined. The tab is similar to the one for Capillary Pressure Curve but some properties cannot be entered (e.g. surface tension and contact angle).

If the phase distribution under the Wetting Parameters tab is chosen by Pore Size, the displaced fluid must be present in the structure and can be chosen from the drop-down menu. If the phase distribution is taken from Simulated Wetting Process, then both fluids are defined by the capillary pressure curve result file.

Set the Temperature applied for the calculation in the selected units below. Click Open & Edit Material Database to edit the materials properties in the material database if needed.

The table with the materials contained in the structure has the same entries and tabs as the table in the Constituent Materials tab in ConductoDict (except for the Specific Thermal Contact Resistivity tab).
