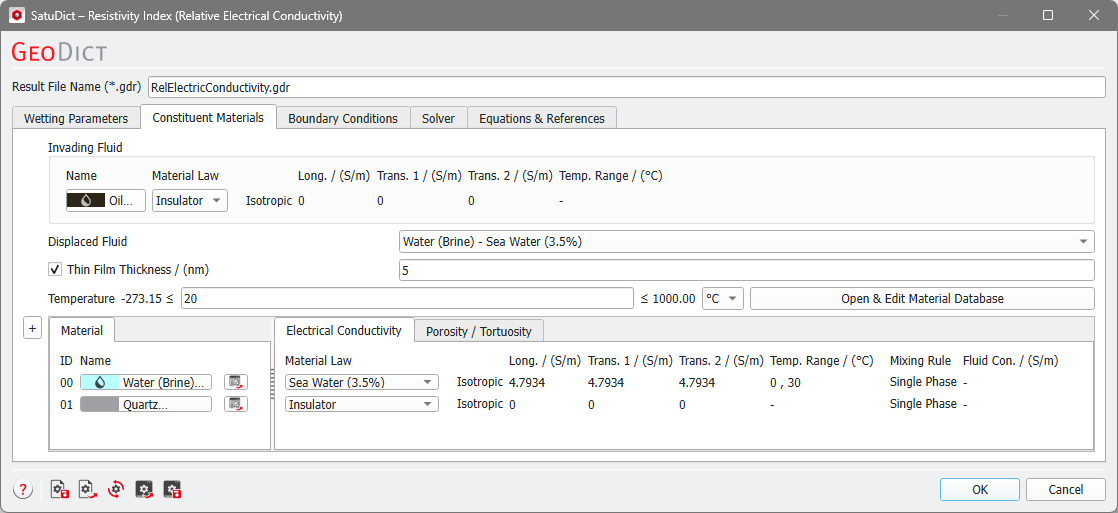

Under the Constituent Materials tab, the Invading Fluid and Displaced Fluid can be entered and their electrical conductivity (S/m) can be defined. The tab is similar to the one for Capillary Pressure Curve but some properties cannot be entered (e.g. surface tension and contact angle).

If the phase distribution under the Wetting Parameters tab is chosen by Pore Size, the displaced fluid must be present in the structure and can be chosen from the drop-down menu. If the phase distribution is taken from Simulated Wetting Process, then both fluids are defined by the capillary pressure curve result file.

The table with the materials contained in the structure has the same entries and tabs as the table in the Constituent Materials tab in ConductoDict (except for the Specific Electrical Contact Resistivity tab).

Additionally, by checking Thin Film Thickness, the Thin Film Model can be used. The thickness of the thin film must be smaller than the current voxel length.
