The result file (*.gdr) is opened in the Result Viewer after the computation is finished. Only the tabs listed below are described in detail, for the other tabs look into the Result Viewer chapter.

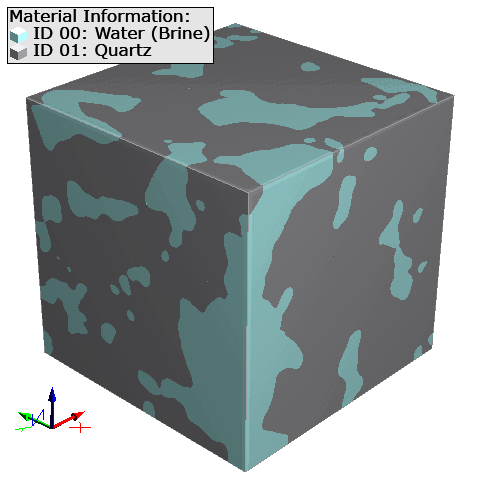

The results of the resistivity index calculated on a partially saturated porous material with 17% porosity (83% SVF) are shown. The invading fluid is Oil (0 S/m) and the displaced fluid is Water (Brine) (5 S/m) while the only solid material in the structure is the non-conductive material Quartz (Material ID 01) with 0 S/m. The relative electrical conductivity was calculated in Z-direction with Dirichlet boundary conditions (Boundary Conditions tab). Computations were run using the EJ solver.
