After the Estimate Three-Phase Contact Line calculation is finished, the resulting files are saved in the project folder and a Result Viewer with the GeoDict result file opens automatically. The created GeoDict result file (*.gdr) contains five tabs. The computational results are shown under the Results tab, and can be loaded for visualization via the Data Visualization tab. The other three tabs (Input Map, Log Map, and Metadata) display additional information about the computation.

Find more details on the general functionalities in the Result Viewer user guide.

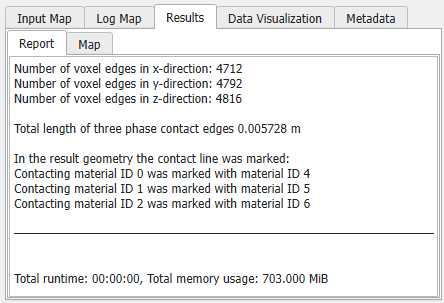

In this algorithm, all voxel edges are found that are adjacent to all three materials. The report contains the computed values for Number of voxel edges in x-, y-, and z-direction, as well as the Total length of three phase contact edges, which is computed by multiplying the sum of the above numbers with the voxel length.

The result geometry where the contact lines are marked can be loaded from the Data Visualization tab.
