Stopping Criterion

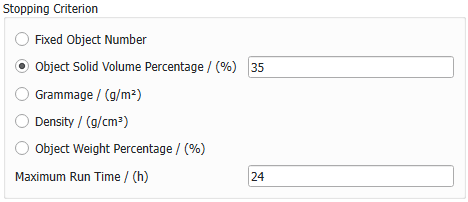

The parameters in the Stopping Criterion panel define according to which criteria the object generation should be stopped. The available parameters are Fixed Object Number, Object Volume Percentage / (%), Grammage / (g/m2), Density / (g/cm3) or Object Weight Percentage / (%). Additionally, when the Maximal Run Time / (h) is expired, the process is stopped even when the desired stopping criterion cannot be achieved.
When Grammage, Density or Object Weight Percentage are chosen as stopping criterion, the temperature must be set as additional parameter. The density of the constituent materials will be set with respect to the chosen temperature based on the Material Database.
When choosing Fixed Object Number or Object Volume Percentage, the temperature parameter is not available.

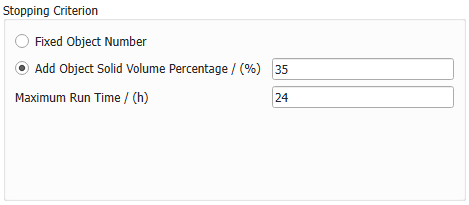

If checking Create in Current and Keep Current Objects / Structure only the criteria Fixed Object Number, Add Object Solid Volume Percentage and Maximum Run Time are available.
Fixed Object Number
When Fixed Object Number is chosen as stopping criterion, FiberGeo places the given number of fibers in the structure and then the generation stops.
Observe the effect of setting a fixed number of objects (20, 100, or 500) as stopping criterion, for the generation of a structure with two fiber types. All other parameters are left untouched, including the default Allow Fiber Overlap. Note how the overlap, shown in blue, increases with the number of objects present in the structure.
|
(Add) Object Solid Volume Percentage
The Object Solid Volume Percentage (SVP) determines the fraction of the total volume in percent that the fibrous structure should have. Accepted values range from 0% to 100%. For example, a structure with an Object Solid Volume Percentage of 40 consists of 40% fibers and 60% void space. Porosity is defined as 1 – SVP/100.
Observe the difference in a structure when varying the solid volume percentage from 5%, to 20%, and finally to 40%, while all other parameters are left unchanged.
If Create in Current and Keep Current Objects / Structure are selected, the parameter changes to Add Object Solid Volume Percentage. Only the added solid volume percentage counts, i.e., only the objects not overlapping with the current structure are considered for the stopping criterion. Therefore, it is important to prevent overlap, for example by checking Prohibit Overlap with Current Structure.
|
Grammage
The Grammage / (g/m2) determines the mass per unit area (in the XY-Plane) of the resulting fibrous structure. When Grammage is chosen as stopping criterion, the Density (g/cm3) of the fiber material(s) must be defined for each fiber type and chosen material in the fiber panels under the Fiber Options tab and the temperature has to be set in the Create Options tab.
Observe the effect of increasing the Grammage from 15 g/m2 to 40 g/m2, whereas all other parameters are left unchanged.
|
Density
The Density of the complete resulting structure depends on the densities of the constituent materials. In the following simple example, the Matrix Density is 0 (for Air), and the two fiber materials have densities of 1.0 g/cm3 and 3.1 g/cm3. The Density is set to values of 0.10 g/cm3 and to 0.25 g/cm3. The Density value cannot be set smaller than the lowest occurring density (here, 0 g/cm3) or larger than the highest occurring density (here, 3.1 g/cm3).
|
Object Weight Percentage
The Object Weight Percentage determines the weight of the created object in relation to the weight of the whole structure (including the matrix material). The calculation is only possible when the density of the Pore / Matrix Material is greater than zero. Otherwise, an error message will appear.
|
Maximum Run Time
The Maximum Run Time (h) becomes important when generating complex structures with elevated solid volume fraction. When Prohibit Fiber Overlap has been checked, the required number of objects in the structure may become unattainable. In that case, the structure generation is stopped after the time entered in Maximum Run Time has passed and the achieved structure is considered as the result. The analysis of the GDR result file shows any disparity between the achieved result values and the desired ones.
|
How to know if the stopping criterion is achieved?
The relationship of the variables Fixed Object Number, Object Solid Volume Percentage, Grammage and Weight Percentage can be observed in the Result Viewer of the result file, under the Results - Report subtab.
In this example, a Count (Fixed Object Number) of 52 corresponds to a Volume (Object Volume Percentage) of 10.35%, a Grammage of 50.46 g/m2 and a Density of 0.2523 g/cm³.
|
