The Generate Granular Twin From 3D uses the Generate Granular Structure app to generate a digital twin of a 3D reference structure, combined with an optimization algorithm to iterate the twin to the target.

|
Modules needed to run this GeoApp:
GrainGeo, PoroDict+MatDict
Depending on the settings: FlowDict, DiffuDict
|
Clicking Edit... opens the Generate Granular Twin From 3D dialog. At the top, define a Result File Name for the result file and the result folder containing the generated structure.
Initial Parameter Values
Overlay Grains and Random Field Settings
In this panel you setup the initial structure for the local optimization.
The Overlay Strength is the field overlay strength in percentage. At 100% overlay strength the result will only show the grain package, while at 0% overlay strength the result will show only the Gaussian random field. If no Random Field is used, this value is automatically set to 100%. If no Grain Generator is used, this value is automatically set to 0%.
|
Grain Generator
Select the basic shape used to generate the 3D structure. Select None as Grain Generator to use only the Random Field for the structure generation. The app uses the GrainGeo - Create Grains command to create the grain structure. Be aware that all lengths are given in the unit voxel.
For the Sphere shape, the diameters are Gaussian distributed. Select the mean diameter and the standard deviation.
For the Ellipsoid shape, the first diameter is Gaussian distributed. Select the mean diameter and the standard deviation. For the other two diameters, the same fixed aspect ratio is used. The selected aspect ratio must be between 0.25 and 1. Therefore, only prolate spheroid shapes are possible here.
For the Convex Polyhedron shape, an (prolate spheroid) ellipsoid is used as enclosing object with matching Enclosing Object Volume (see the GrainGeo user guide for details). Select the mean diameter and the standard deviation. For the other two diameters, the same fixed aspect ratio is used. Again, the selected aspect ratio must be between 0.25 and 1.

|
The values entered for diameters, standard deviations and aspect ratios define the initial structure for the local optimization. They are only used if UseManual was selected for Initial Parameter Values.
|
|
Random Field
Add Binder
It is possible to use GrainGeo - Add Binder as an additional structure generation step. Select Isotropic and enter the desired Binder Solid Volume Percentage.
This function does not add another 'binder' material to the structure. Instead, it fills the small pores between the generated grains with the same material, thus creating a well-connected solid phase from unconnected objects. The added material isotropic and homogeneously distributed inside the structure.
|

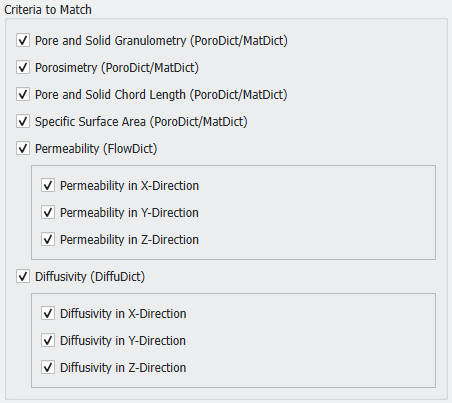

Criteria to Match
The error function is a combination of several components. Define the error function components from the list of physical properties. These structure properties will be matched by the twin as good as possible.
Select Pore and Solid Granulometry to use the PoroDict - Pore Size Distribution (Granulometry) and MatDict - Solid Size Distribution commands to compare the digital twin with the original 3D image.
Select Porosimetry to use the PoroDict - Pore Size Distribution (Porosimetry) command to compare the digital twin with the original 3D image.
Select Pore and Solid Chord Length to use the PoroDict - Chord Length Distribution and MatDict - Chord Length Distribution commands to compare the digital twin with the original 3D image.
Select Specific Surface Area to use the MatDict - Estimate Surface Area command to compare the digital twin with the original 3D image.
Select Permeability to use the FlowDict-Stokes command to determine the permeability. Select the space directions used to compare the digital twin with the original 3D structure. To use this option, a FlowDict license is required.
Select Diffusivity to use the DiffuDict - Bulk Diffusion command to determine the diffusivity. Select the space directions used to compare the digital twin with the original 3D structure. To use this option, a DiffuDict license is required.
You must select at least one of these criteria, otherwise the optimizer will fail with an error message.
|
Optimization Components
Select the sets of parameters to be used as optimization variables for fitting the reference structure. If not selected, the according parameters from the Digital Twin Setup will stay constant during the optimization.

Select Optimize Overlay Strength to vary the Overlay Strength.
Select Optimize Grain Generator Parameters to vary the diameter, standard deviation and aspect ratio parameters of the Grain Generator. Note that the optimizer does not optimize the generator type, i.e. does not vary between Sphere, Ellipsoid and ConvexPolyhedron shapes.
Select Optimize Random Field Parameters to vary the correlation length(s) and the relative influence parameters of the Random Field. Note that the optimizer does not vary between the OneIsotropicField and TwoIsotropicFields models.
Select Optimize Binder Parameters to vary the solid volume percentage of the binder.
You must select at least one of these options, otherwise the optimizer will fail with an error message.
|
Local Optimization Stopping Criterion
Set the stopping criterion by choosing a maximal number of iterations or set a tolerance accuracy to reach. Note that choosing none or setting the Maximal Number of Optimization Iterations to 0 will perform one single iteration step only.
The selected tolerance applies to the structure generation parameters varied in each iteration step. If the change in these parameters becomes smaller that the selected tolerance, the optimizer stops. The tolerance does not set a limit value for the resulting error function of the found digital twin.

|
Global Optimization Stopping Criterion
|
The Population Size is the number of random samples taken per parameter within the parameter bounds. A large value improves the exploration but increases the runtime for the Differential Evolution. The minimal value allowed is 2.
Global Iterations are the maximum number of generations to evolve the population in the Differential Evolution. Higher values refine the results but require more evaluations. The minimal value allowed is 2.
In total, the number of function evaluations can be up to Population Size times Global Iterations times the number of parameters. The number of parameters is defined by the selected Optimization Components.
|
Set Geometry Size
Check the box to set the size of the structure model used during the optimization.

If the box is not checked, the app chooses a size automatically.

|
Important! The numbers given for NX, NY, NZ must be even! The generation fails when uneven numbers are entered here.
|
|
Clean up after completion
If checked, all intermediate results are deleted.
|
Set Expert Structure Generation Settings
Activating the check box enables to set several additional parameter.
Check Invert Grains for Overlay to switch pore and solid material. In this case, the grain generator creates the pore space, and the background becomes the solid material.
Each granular object is created with a random orientation. By default, the orientation is isotropic, and every direction has the same probability. Check the Specify the Grain Orientation box to define an anisotropic distribution of the object's orientation.
Define the orientation tensor as described for the Object Options of the GrainGeo - Create Grains command. The three Orientation Tensor parameters entered here correspond to the diagonal entries of the orientation tensor.
The tensor describes the distribution of the grain's main direction, which corresponds to the long axis of the prolate spheroid.

The created random field contains values distributed around mean value 0. Check Square Random Field to square these values, thus turning all values positive. Checking Invert Squared Field further inverts them. These operations fundamentally change the stochastic filed and the shape of the structures that appear after applying the threshold. See the Field Post-Processing in GrainGeo's Stochastic Field Thresholding command.
|
Set Expert Local Optimization Settings

Increasing the step size of the local optimization may improve the results of the optimizer.
The structure generation is a stochastic process, therefore each test structure is not only dependent on the parameters to optimize, but also on a random number. The computed matching criteria are therefore dependent on the random number, too. If the dependency on the random number is larger that the dependency on the structure generation parameters, the local optimization may become stuck and cannot find the correct direction for the parameter search. Therefore, it may help to enlarge the step size to increase the effect of the parameter choice on the result and to help the algorithm find the new search direction.
|
Results
After the generation is finished, the corresponding result file is opened in the Result Viewer.
The Report tab
The Structure Details table reports the grid size, voxel length and solid volume percentage of the reference structure and the digital twin. The Digital Optimization Twin is the structure used for the comparison with the reference structure, the Digital Twin the created 3D structure.
The Structure Generation Parameters table shows the found optimal structure generation parameters. You can use these parameters as input in the Generate Structure app to create multiple digital twin models.

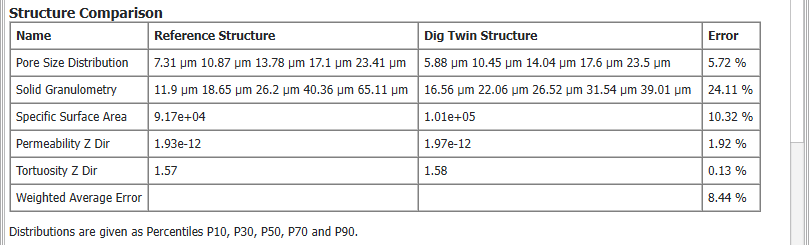

The Structure Comparison table compares the computed measures of the reference structure and the digital twin and states the error in the respective measure.
The Optimization table report the number of iterations and function evaluations needed. Iterations and Evaluations needed for the global optimization and for the local optimization are reported separately. Below, the total runtime of the optimization is reported.
Plots tab
The Parameters by Evaluation and Parameters by Iteration plots show the evolution and convergence of the structure generation parameters in each step.
The Target Errors by Evaluation / Iteration plots show the results of the structure comparison in each step.
Data Visualization
In this tab, you can load the 2D reference structure, the 2D Digital Optimization Twin used to compute the matching criteria and the created 3D Digital Twin.
Result folder content
In the result folder, find the following:
- The analysis results of the reference structure is stored in the Reference Structure folder.
- The analysis results of the found digital twin is stored in the Digital Twin folder.
- The intermediate evaluation results, if Clean up after completion is not checked.
- The used parameters, the corresponding simulation results and the error function evaluation of every step are contained in the DigitalTwinGlobal.csv and DigitalTwin.csv files.
- The final statistical digital twin Structure.gdt.
